ADMTECK

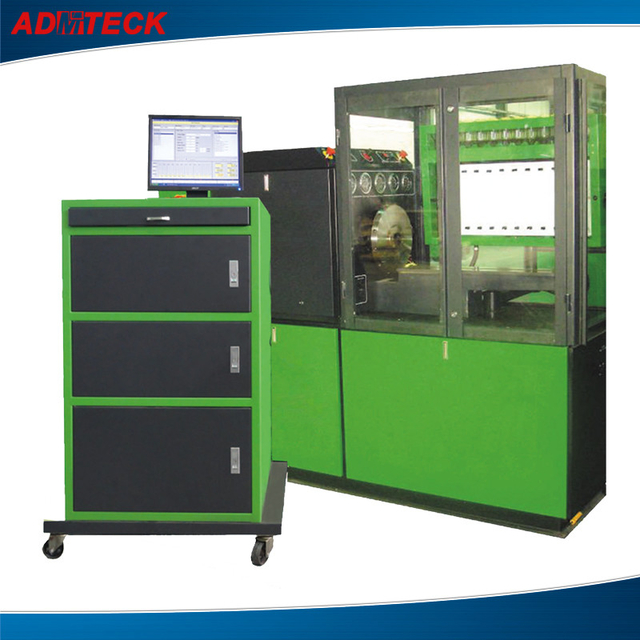

ADM800GLS,for testing common rail injectors and common rail pumps, also can test machenical fuel pumps, measuring with cups, LCD Display
Specifications:
Power: 11Kw,15Kw,18.5Kw,22Kw etc
Rated Voltage: 220V/380V/415V
Rated Voltage: 50/60HZ
Cylinders: 6 / 12
Speed Range: 0—4000rpm
Color: green blue yellow or on request
Weight: 1080kgs
Temperature Control Range: 42℃ ,Accuracy:±2℃
Return Volume Measurement Range: 0---400L/H
Backflow pressure control range: 0—3 bar
Feed Volume Measurement Range: 0----45L/H
Max pressure: 2000 bar
Main Functions:
For testing and calibrating:
1. The testing database could be updated
2. With industrial computer, more stable and reliable
3. Mechanical in-line pumps and distributor pumps
4. Check and calibrate automatically and give out the testing report
5. Test BOSCH, DENSO, DELPHI, SIMENS etc brands Injectors
6. Can set common rail injector’s injection status, and measuring the oil quantity.
7. Proceed high pressure washing towards the common rail injector
8. Custom setting the characteristics of rail pressure, pulse width and oil measuring time
Technical Specification:
| 1. Power | 11Kw,15Kw,18.5Kw,22Kw etc |
| 2. Rated Voltage | 220V/380V/415V |
| 3. Rated Voltage | 50/60HZ |
| 4. Speed Range | 0—4000rpm |
| 5. Backflow pressure control range | 0—3 bar |
| 6. Temperature Control Range | 42℃ ,Accuracy:±2℃ |
| 7. Feed Volume Measurement Range | 0----45L/H |
| 8. Return Volume Measurement Range | 0---400L/H |
| 9. Max pressure | 2000 bar |
Competitive Advantage:
