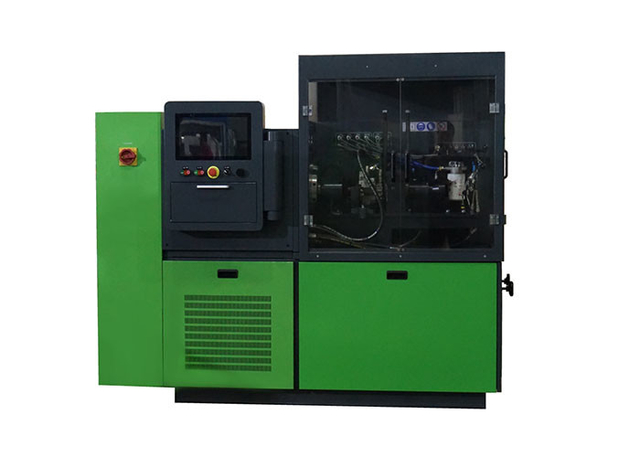

Electronic Common Rail Diesel Injector Pump Test bench / tester 22KW 415v
Quick Details:
Usage: Auto Testing Machine
Power: Electronic
Power: 11Kw,15Kw,18.5Kw,22Kw etc
Rated Voltage: 220V/380V/415V
Rated Voltage: 50/60HZ
Cylinders: 6 / 12
Speed Range: 0—4000rpm
Temperature Control Range: 42℃ ,Accuracy:±2℃
Backflow pressure control range: 0—3 bar
Feed Volume Measurement Range: 0----45L/H
Return Volume Measurement Range: 0---400L/H
Max pressure: 2000 bar
Color: green blue yellow or on request
Weight:1080kgs
Description:
common rail pump and injector test bench:
ADM800SEN common rail test bench is our latest independent researched special device to test the
performance of high-pressure common rail pump and injector, it can test common rail pump and
injector of BOSCH, SIEMENS, DELPHI and DENSO. It tests the common rail injector by imported high
precise flow meter sensor, can test piezo injector. It controlled by industrial computer by real time. The data is also obtained by computer. 19 LCD screen display makes the data more clear. M800SEN
can fulfill the remote assistance by internet and make the maintenance easy to operate. Advanced
technology, steady performance, precise measurement and convenient operation.
For testing and calibrating:
1. Mechanical in-line pumps and distributor pumps
2. Electronic control VE pumps and inline pumps high pressure common rail pumps: BOSCH CP1, CP2, CP3, DELPHI, SIMENS, DENSO HP0, HP2, HP3 PUMP
3. Common rail injectors
4. The testing database could be updated
5. Check and calibrate automatically and give out the testing report
6. With industrial computer, more stable and reliable
Technical Specification:
| 1. Power | 11Kw,15Kw,18.5Kw,22Kw etc |
| 2. Rated Voltage | 220V/380V/415V |
| 3. Rated Voltage | 50/60HZ |
| 4. Cylinders | 6 / 12 |
| 5. Speed Range | 0—4000rpm |
| 6. Temperature Control Range | 42℃ ,Accuracy:±2℃ |
| 7. Backflow pressure control range | 0—3 bar |
| 8. Feed Volume Measurement Range | 0----45L/H |
| 9. Return Volume Measurement Range | 0---400L/H |
| 10. Max pressure | 2000 bar |
Competitive Advantage:
Factory Pictures:
