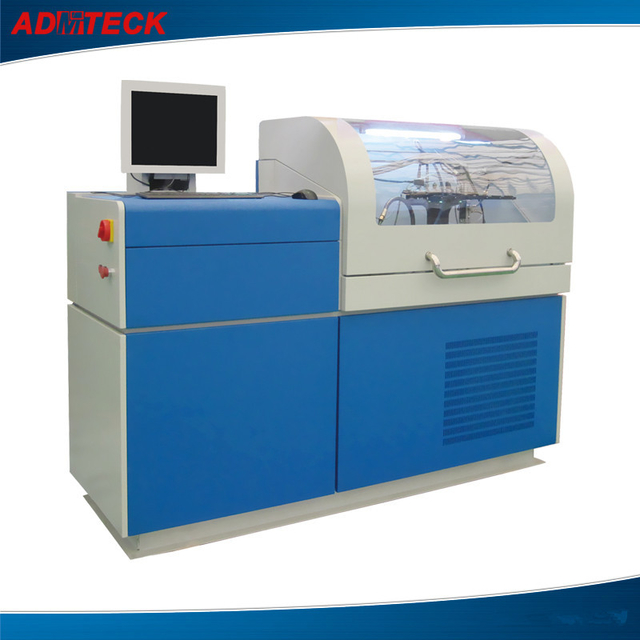

Accuracy injector Common Rail diesel Test Equipment with 6 / 12 Cylinders 18.5KW 380V
Quick Details
Indication: with flow meter
Test injector brand: BOSCH, DELPHI, DENSO, SIEMENS
Usage: Auto Testing Machine
Color: green blue yellow or on request
Power: Electronic
1. Power: 15Kw, 18.5Kw
2. Rated Voltage: 220V/380V/415V
3. Rated Voltage: 50/60HZ
4. Cylinders: 6 / 12
5. Speed Range: 0——4000rpm.
6. Temperature Control Range: 42℃ ,Accuracy:±2℃
7. Fuel supply pressure range: 0—0.4Mpa
8. Feed Volume Measurement Range: 0.03----45L/H
9. Return Volume Measurement Range: 6----400L/H
10. Rail pressure: up to 2000Bar
11. Cooling capacity: 5000Kal (water cooling)
12. Weight: 1080kgs

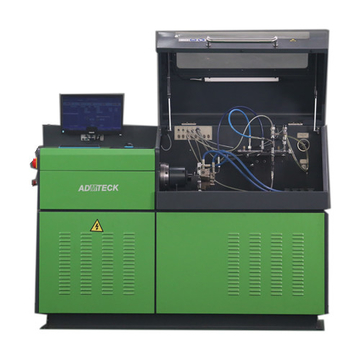

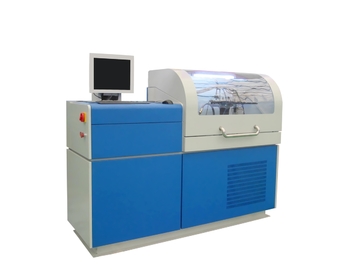

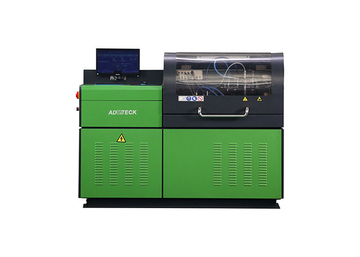

Common rail test bench ADM8719:
ADM8719 common rail test bench is our latest independent researched special device to test the
performance of high-pressure common rail pump and injector, it can test common rail pump and injector
of BOSCH, SIEMENS,DELPHI and DENSO. It tests the common rail injector by imported high precise flow meter sensor,can test piezo injector. It controlled by industrial computer by real time. The data is also
obtained by computer. 19 LCD screen display makes the data more clear. ADM8719 can fulfill the remote
assistance by internet and make the maintenance easy to operate. Advanced technology, steady
performance, precise measurement and convenient operation.
Competitive Advantage:
Main Characteristics:
MAIN FUNCTIONS:
1. For the testing of the common rail pumps of BOSCH CP1,CP2,CP3, DENSO HP0,HP2,HP3,HP4,
DELPHI and SIMENS
2. Test the flow control valve of the common rail pumps.
3. Test the sealing of the CR injectors, the injection flow volume under full-loaded, emission point,
idling and the pre-injection, also back flow volume.
Main parameters:
1. Main motor power: 15KW(20HP),18.5KW(25HP)；
2. Working voltage: 3 phase 220/380/415V, 50HZ/60HZ；
3. Speed range: 0—4000rpm；
4. Supply pressure of the testing fuel: 0—4bar；
5. Fuel tank capacity: 80L；
6. Currency control range: 0—3A；
7. Injection width control range: 100--3000µs；
8. Injection volume range: 0.1ML—2000ML/1000times；
9. Backflow measuring range: 6—400L/H；
10. Pressure control range: 0—2000BAR；
11. Fuel temperature range: 30--60℃；
12. Cooling method: Compressor cooling
13. Cooling capacity: 5000KALTechnical Specification:
| 1. Power | 15KW 18.5Kw |
| 2. Rated Voltage | 220V/380V/415V |
| 3. Rated Voltage | 50/60HZ |
| 4. Speed Range | 0—4000rpm |
| 5. Supply pressure of the testing fuel | 0—4bar |
| 6. Fuel tank capacity | 80L |
| 7. Currency control range | 0—3A |
| 8. Injection width control range | 100--3000µs |
| 9. Injection volume range | 0.1ML—2000ML/1000times |
| 10. Backflow measuring range: | 6—400L/H |
| 11. Pressure control range | 0—2000BAR |
| 12. Fuel temperature range | 30--60℃ |
| 13. Cooling method | Compressor cooling |
| 14. Cooling capacity: | 5000KAL |
