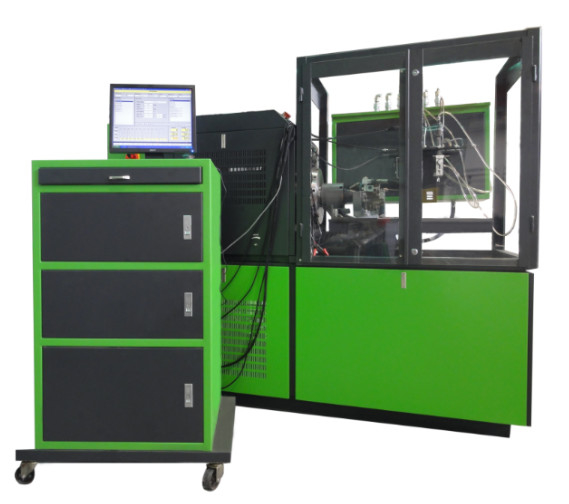

ADMTECK ADM800SEN,Common Rail System Test Bench and Machenical Fuel Pump Test Bench,measuring with sensor, kinds of output power for option.
Technical Specification:
| 1. Power | 11Kw,15Kw,18.5Kw,22Kw |
| 2. Rated Voltage | 220V/380V/415V |
| 3. Rated Voltage | 50/60HZ |
| 4. Cylinders | 6 / 12 |
| 5. Speed Range | 0—4000rpm |
| 6. Temperature Control Range | 42℃ ,Accuracy:±2℃ |
| 7. Backflow pressure control range | 0—3 bar |
| 8. Feed Volume Measurement Range | 0----45L/H |
| 9. Return Volume Measurement Range | 0---400L/H |
| 10. Max pressure | 2000 bar |
Color: green blue yellow or on request
Weight: 1080kgs
For testing and calibrating:
1. Mechanical in-line pumps and distributor pumps
2. Electronic control VE pumps and in-line pumps high pressure common rail pumps: BOSCH CP1, CP2,
CP3, DELPHI, SIMENS, DENSO HP0, HP2, HP3 PUMP
3. Common rail injectors
4. The testing database could be updated
5. Check and calibrate automatically and give out the testing report
6. With industrial computer, more stable and reliable
Quick Details
Usage: Auto Testing Machine
Power: Electronic
Competitive Advantage:
