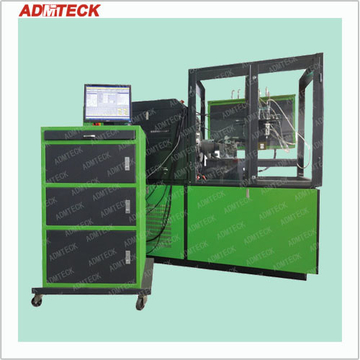

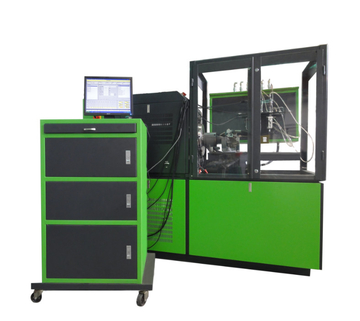

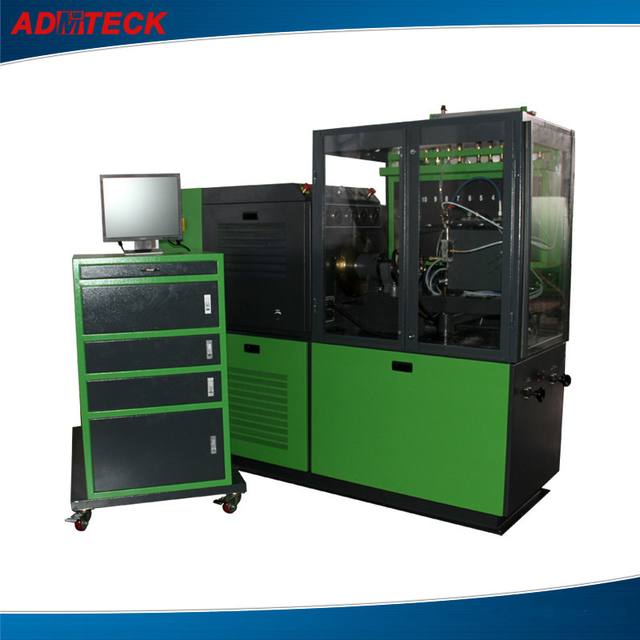

Water cooling SIEMENS common rail test equipment / Common rail injector test bench
Quick Details
Power: 15Kw,18.5Kw,22Kw etc
Rated Voltage: 220V/380V/415V
Rated Voltage: 50/60HZ
Cylinders: 6 / 12
Speed Range: 0—4000rpm
Temperature Control Range: 42℃ ,Accuracy:±2℃
Backflow pressure control range: 0—3 bar
Feed Volume Measurement Range: 0----45L/H
Return Volume Measurement Range: 0---400L/H
Max pressure: 2000 bar
Color: green blue yellow or on request
Weight: 1080kgs
For testing and calibrating:
1.The testing database could be updated
2. With industrial computer, more stable and reliable
3. Electronic control VE pumps and in-line pumps high pressure common rail pumps: BOSCH CP1, CP2,
CP3, DELPHI, SIMENS, DENSO HP0, HP2, HP3 PUMP
4. Common rail injectors
5. Mechanical in-line pumps and distributor pumps
6. Check and calibrate automatically and give out the testing report
Technical Specification:
| 1. Power | 15Kw,18.5Kw,22Kw etc |
| 2. Rated Voltage | 220V/380V/415V |
| 3. Rated Voltage | 50/60HZ |
| 4. Cylinders | 6 / 12 |
| 5. Speed Range | 0—4000rpm |
| 6. Backflow pressure control range | 0—3 bar |
| 7. Temperature Control Range | 42℃ ,Accuracy:±2℃ |
| 8. Feed Volume Measurement Range | 0----45L/H |
| 9. Return Volume Measurement Range | 0---400L/H |
| 10. Max pressure | 2000 bar |
Competitive Advantage:
