ADMTECK

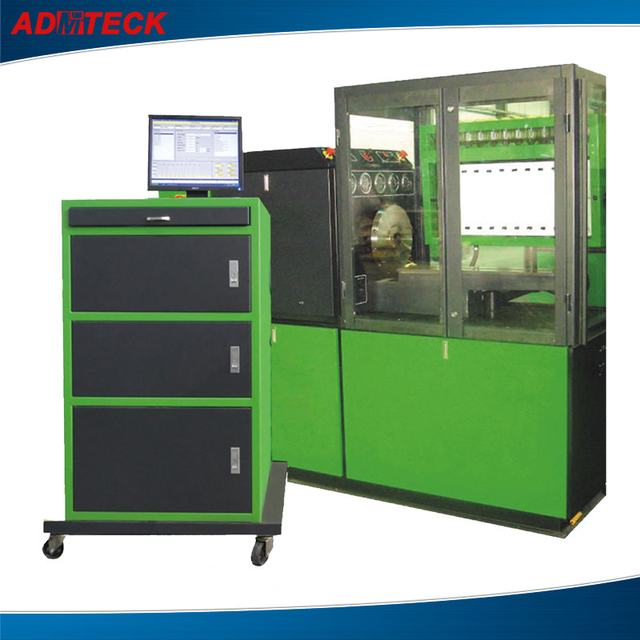

ADM800GLS, Common Rail System Test Bench, for testing common rail injectors and common rail pumps, also can test machenical fuel pumps. Measuring with cups.
Quick Details
Power: 11Kw,15Kw,18.5Kw,22Kw etc
Rated Voltage: 220V/380V/415V
Rated Voltage: 50/60HZ
Cylinders: 6 / 12
Speed Range: 0—4000rpm
Color: green blue yellow or on request
Weight: 1080kgs
Temperature Control Range: 42℃ ,Accuracy:±2℃
Return Volume Measurement Range: 0---400L/H
Backflow pressure control range: 0—3 bar
Feed Volume Measurement Range: 0----45L/H
Max pressure: 2000 bar
For testing and calibrating:
1. Rotation direction: Positive & Negative;
2. Output shaft speed range:0~4000rpm;
3. Output shaft speed and Stroke times setting and meter show
4. Test oil injection of each cylinder at any speed;
5. Checking injection time of each cylinder at static.
6. Test of sealing oil pump.
7. Checking of transfer pump.
8. Mechanical speed governors testing.
9. Test electromagnetic valve of distributor pump.DC 12V and DC 24V.
10. Distributor pump reflux delivery measuring.
11.Test pneumatic speed governors.
12. Test vacuum capacity of speed governor.
13. Check manifold pressure compensators (LDA)
14. Measuring internal pressure of distributor pump.
15. Diesel fuel temperature meter digital showing.
Technical Specification:
| 1. Power | 11Kw,15Kw,18.5Kw,22Kw etc |
| 2. Rated Voltage | 220V/380V/415V |
| 3. Rated Voltage | 50/60HZ |
| 4. Speed Range | 0—4000rpm |
| 5. Backflow pressure control range | 0—3 bar |
| 6. Temperature Control Range | 42℃ ,Accuracy:±2℃ |
| 7. Feed Volume Measurement Range | 0----45L/H |
| 8. Return Volume Measurement Range | 0---400L/H |
| 9. Max pressure | 2000 bar |
Competitive Advantage:
Factory Pictures
