ADMTECK

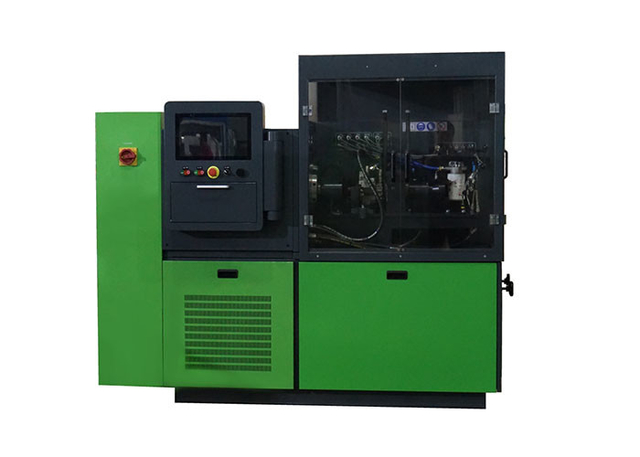

ADM800SEN, can test common rail injectors, common rail pumps,and machenical fuel pumps, measuring with sensors,
Technical Specification:
| 1. Power | 11Kw,15Kw,18.5Kw,22Kw |
| 2. Rated Voltage | 3 phase,220V/380V/415V |
| 3. Rated Voltage | 50/60HZ |
| 4. Cylinders | 6 / 12 |
| 5. Speed Range | 0—4000rpm |
| 6. Temperature Control Range | 42℃ ,Accuracy:±2℃ |
| 7. Backflow pressure control range | 0—3 bar |
| 8. Feed Volume Measurement Range | 0----45L/H |
| 9. Return Volume Measurement Range | 0---400L/H |
| 10. Max pressure | 2000 bar |
Cooling Method: Compressor Cooling
Cooling Capacity: 5000KAL
For testing and calibrating:
1. Mechanical in-line pumps and distributor pumps
2. Electronic control VE pumps and inline pumps high pressure common rail pumps: BOSCH CP1, CP2,
CP3, DELPHI, SIMENS, DENSO HP0, HP2, HP3 PUMP
3. Common rail injectors
4. The testing database could be updated
5. Check and calibrate automatically and give out the testing report
6. With industrial computer, more stable and reliable
ADM800SEN is our latest independent researched special device to test the performance of high-pressure common rail pump and injector, it can test common rail pump and injector of BOSCH, SIEMENS,
DELPHI and DENSO. It tests the common rail injector by imported high precise flow meter sensor, can test piezo,injector. It controlled by industrial computer by real time. The data is also obtained by computer. 19 LCD screen display makes the data more clear. M800SEN can fulfill the remote assistance by internet andmake the maintenance easy to operate.Advanced technology, steady performance, precise measurementand convenient operation.
Competitive Advantage:
Factory Pictures:
