ADMTECK

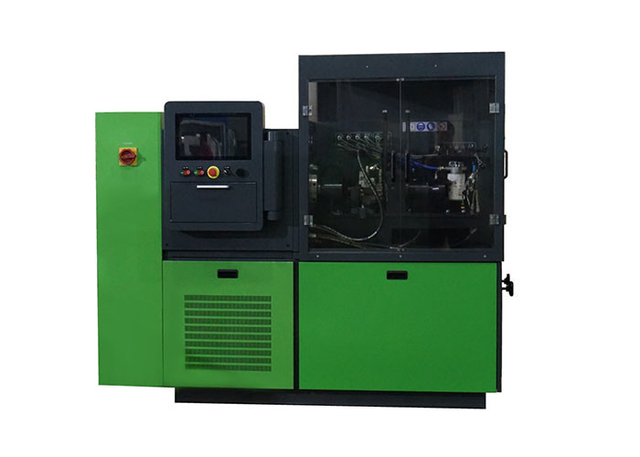

ADM800SEN, for testing Common Rail Injector and Pumps, also can test machenical fuel pumps, measuring with sensors
Quick Details
Power: 11Kw,15Kw,18.5Kw,22Kw etc
Rated Voltage: 220V/380V/415V
Rated Voltage: 50/60HZ
Cylinders: 6 / 12
Speed Range: 0—4000rpm
Temperature Control Range: 42℃ ,Accuracy:±2℃
Backflow pressure control range: 0—3 bar
Feed Volume Measurement Range: 0----45L/H
Return Volume Measurement Range: 0---400L/H
Max pressure: 2000 bar
Color: green blue yellow or on request
Weight: 1080kgs
For testing and calibrating:
1.The testing database could be updated
2. With industrial computer, more stable and reliable
3. Common rail injectors
4. Mechanical in-line pumps and distributor pumps
5.It can check BOSCH, DENSO, DELPHI and SIEMENS.
6.Industrial computer motherboard and embedded operating system windows XP. Its screen displays basic status such as the rail pressure, temperature, motor operation, speed, heating, cooling, also has some windows for fuel injection pump test, common rail test, fuel measurement, parameter setting, injection waveform, problem analysis and data reports.
7. Touch screen operation, easy to learn and use.
8. Oil injection and oil return are automatically detected and clearly displayed on the large screen.
Competitive Advantage:
Technical Specification:
| 1. Power | 11Kw,15Kw,18.5Kw,22Kw etc |
| 2. Rated Voltage | 220V/380V/415V |
| 3. Rated Voltage | 50/60HZ |
| 4. Cylinders | 6 / 12 |
| 5. Speed Range | 0—4000rpm |
| 6. Backflow pressure control range | 0—3 bar |
| 7. Temperature Control Range | 42℃ ,Accuracy:±2℃ |
| 8. Feed Volume Measurement Range | 0----45L/H |
| 9. Return Volume Measurement Range | 0---400L/H |
| 10. Max pressure | 2000 bar |
