ADMTECK

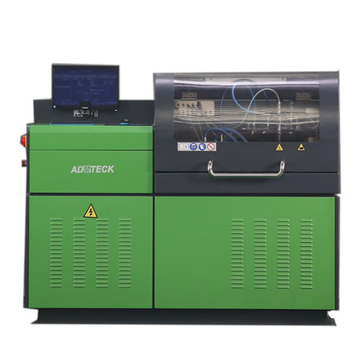

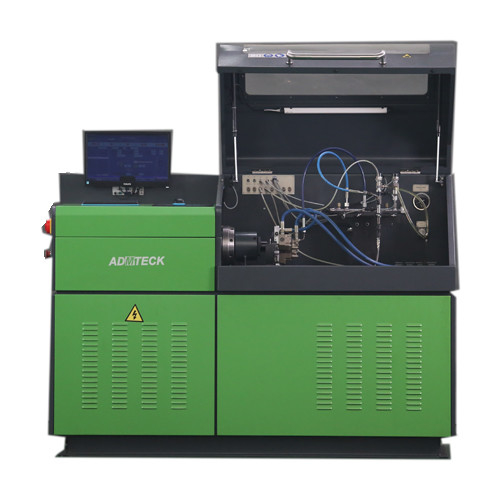

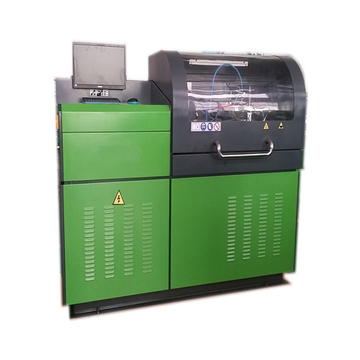

ADM8719, Common Rail System Test Bench, for testing and calibrating different common rail injectors and pumps, 18.5Kw,2000Bar
Quick Details
Usage: Auto Testing Mechine
Power: 18.5Kw
Rated Voltage: 220V/380V/415V
Rated Voltage: 50/60HZ
Cylinders: 6 / 12
Speed Range: 0—4000rpm
Temperature Control Range: 42℃ ,Accuracy:±2℃
Backflow pressure control range: 0—3 bar
Feed Volume Measurement Range: 0----45L/H
Return Volume Measurement Range: 0---400L/H
Rail pressure: up to 2000 bar
Functions:
Industrial computer controls timely, windows system, touching screen operation
Adopt 0~2000bar pressure caused by original high pressure common rail pump
Test the pre-injection oil quantity of common rail injector.
Test the max. oil quantity of common rail injector.
Test the backflow oil quantity of common rail injector.
Test the average oil quantity of common rail injector.
Built-in standard database of common rail injector,Free upgrades,users can also be free to add data.
Measuring the returned oil quantity of distribution pumps.
Technical Specification:
| 1. Power | 18.5Kw |
| 2. Rated Voltage | 220V/380V/415V |
| 3. Rated Voltage | 50/60HZ |
| 4. Cylinders | 6 / 12 |
| 5. Adjustable rotation speed range | 0—4000rpm |
| 6. Backflow pressure control range | 0—3 bar |
| 7. Temperature Control Range | 42℃ ,Accuracy:±2℃ |
| 8. Feed Volume Measurement Range | 0----45L/H |
| 9. Return Volume Measurement Range | 0---400L/H |
| 10. Max pressure | 2000 bar |
Why Choose Us
Factory Pictures
