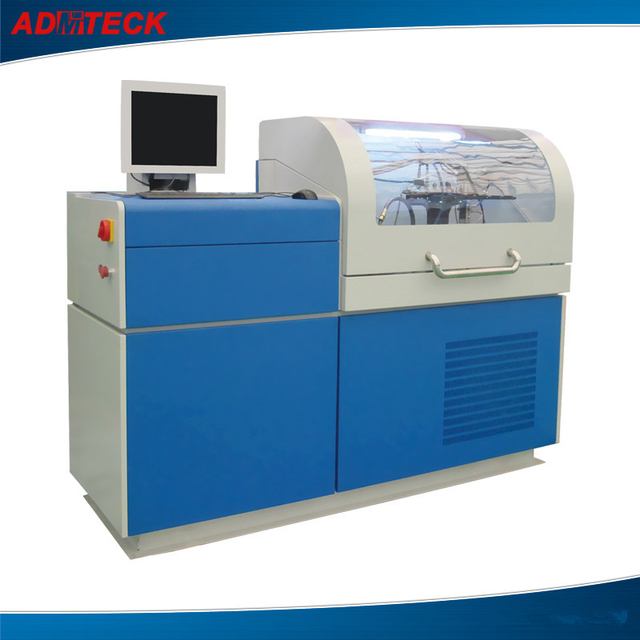

Common Rail System Test Bench
ADMTECK
ADM8719, 18.5Kw, 2000Bar, can test different Common Rail Injectors and Common Rail Pumps
ADM8719 is our latest independent researched special device to test the
performance of high pressure common rail pump and injector, it can test common rail pump and injector ofBOSCH, SIEMENS, DELPHI and DENSO. It tests the common rail injector by imported high precise flow
meter sensor,can test piezo injector. It controlled by industrial computer by real time. The data is also
obtained by computer. LCD screen display makes the data more clear.Can fulfill the remote assistance by internet and make the maintenance easy to operate. Advanced technology, steady performance, precise measurement and convenient operation.
Main parameters:
1. Power | 18.5Kw(25HP) |
2. Rated Voltage | 3 phase,220V/380V/415V |
3. Rated Voltage | 50/60HZ |
4. Speed Range | 0—4000rpm |
5. Supply pressure of the testing fuel | 0—4bar |
6. Fuel tank capacity | 80L |
7. Currency control range | 0—3A |
8. Injection width control range | 100--3000µs |
9. Injection volume range | 0.1ML—2000ML/1000times |
10. Backflow measuring range: | 6—400L/H |
11. Pressure control range | 0—2000BAR |
12. Fuel temperature range | 30--60℃ |
13. Cooling method | Compressor cooling |
14. Cooling capacity: | 5000KAL |
Main Functions:
1. For the testing of the common rail pumps of BOSCH CP1,CP2,CP3, DENSO HP0,HP2,HP3,HP4, DELPHI
and SIMENS
2. Test the flow control valve of the common rail pumps.
3. Test the sealing of the CR injectors, the injection flow volume under full loaded, emission point, idling
and the pre-injection, also back flow volume.
Quick Details
Indication: with flow meter
Test injector brand: BOSCH, DELPHI, DENSO, SIEMENS
Usage: Auto Testing Machine
Color: green blue yellow or on request
Power: Electronic
