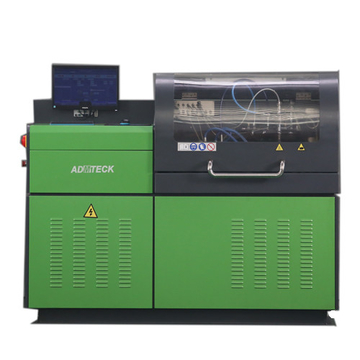

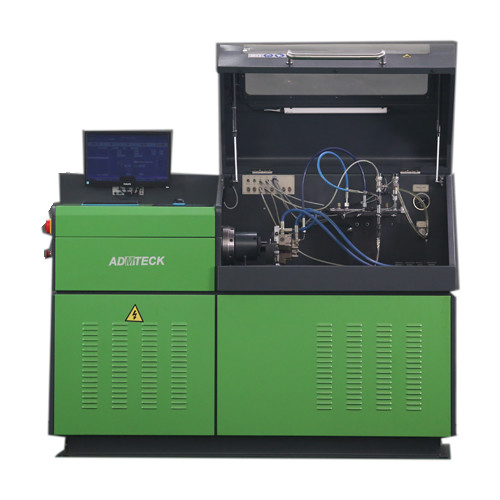

ADMTECK ADM8715,15KW, advanced common rail system test bench, with top technology of mould, for testing different kinds of common rail injectors and pumps.
Main parameters:
1. Main motor power:15KW(20HP) ；
2. Working voltage: 3 phase 220/380/415V, 50HZ/60HZ；
3. Speed range: 0—4000rpm；
4. Supply pressure of the testing fuel: 0—4bar；
5. Fuel tank capacity: 80L；
6. Currency control range: 0—3A；
7. Injection width control range: 100--3000µs；
8. Injection volume range: 0.1ML—2000ML/1000times；
9. Backflow measuring range: 1—600L/H；
10. Pressure control range: 0—2000BAR；
11. Fuel temperature range: 30--60℃；
12. Cooling method: Compressor cooling
13.Cooling capacity: 5000KA
Main functions:
1. For the testing of the common rail pumps of BOSCH CP1,CP2,CP3, DENSO HP0,
HP2,HP3,HP4, DELPHI and SIMENS.
2. Test the flow control valve of the common rail pumps.
3. Test the sealing of the CR injectors,Piezo injector, the injection flow volume under full-loaded, emission point, idling and the pre-injection, also back flow volume.
Why Choose Us
Electronic Control System Picture:
Cooling System and Fuel Tank Picture:
For the Fuel Pump and Pump Flowmeter Picture:
