ADMTECK

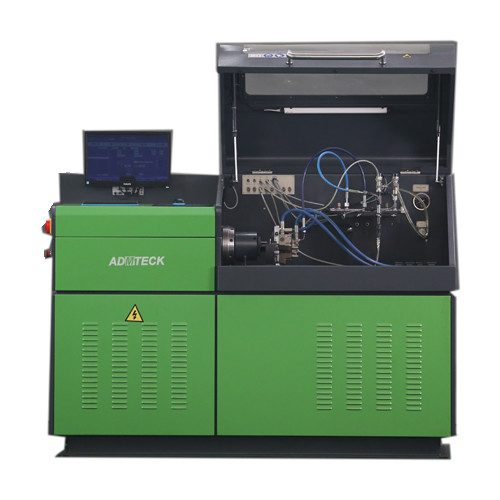

ADM8719, Common Rail System Test Bench, for testing common rail injectors and common rail pumps, Compressor Cooling method, LDC Distplay, measuring with sensor.
Technical Specification:
| 1. Power | 11Kw,15Kw,18.5Kw,22Kw etc |
| 2. Rated Voltage | 220V/380V/415V |
| 3. Rated Voltage | 50/60HZ |
| 4. Cylinders | 6 / 12 |
| 5. Adjustable rotation speed range | 0—4000rpm |
| 6. Backflow pressure control range | 0—3 bar |
| 7. Temperature Control Range | 42℃ ,Accuracy:±2℃ |
| 8. Feed Volume Measurement Range | 0----45L/H |
| 9. Return Volume Measurement Range | 0---400L/H |
| 10. Max pressure | 2000 bar |
Functions:
Checking each cylinder’s injection time statically.
Checking the mechanical speed governor.
Checking the pressure compensator’s performance.
Measuring the returned oil quantity of distribution pumps.
Common rail pump tes&common rail injector test:
Can drive different kinds of high-pressure pumps like BOSCH CP1/CP2/CP3,DELPHI CRSP,DENSO HP3/HP4,SIEMENS DCP and DENSO HP0(optional).
Test the flow control valve of the common rail pumps.
Common rail injector test.
It can flush the injector with high pressure before testing.
Quick Details
Power: 11Kw,15Kw,18.5Kw,22Kw etc
Rated Voltage: 220V/380V/415V
Rated Voltage: 50/60HZ
Cylinders: 6 / 12
Speed Range: 0—4000rpm
Temperature Control Range: 42℃ ,Accuracy:±2℃
Backflow pressure control range: 0—3 bar
Feed Volume Measurement Range: 0----45L/H
Return Volume Measurement Range: 0---400L/H
Max pressure: 2000 bar
Color: green blue yellow or as customer request
Competitive Advantage:
Factory Pictures
