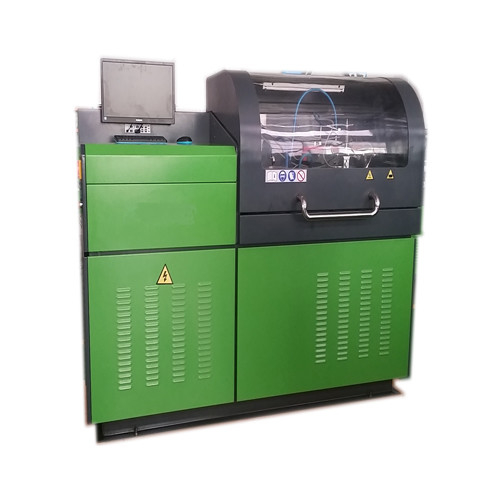

ADM8719,18.5Kw Common Rail Injector and Pump Test Bench With Calibration Data Controlled By Computer
ADM8719,18.5Kw Common Rail Injector and Pump Test Bench With Calibration Data Controlled By Computer

ADM8719,18.5Kw Common Rail Injector and Pump Test Bench With Calibration Data Controlled By Computer

 0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.155339

{{detail_data.prodInfo.name}}

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
$   14,850
0Reviews
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 14,850
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
Returns:
Read details
Add to Wish list
  • Description

    • ADMTECK

    ADM8719,18.5KW, 2000Bar, advanced common rail system test bench with top technology of mould

    Technical Specification:

    1. Power: 18.5Kw
    2. Rated Voltage: 220V/380V/415V
    3. Rated Voltage: 50/60Hz
    4. Cylinders: 6/12
    5. Speed Range: 0----4000rpm
    6. Temperature Control Range: 42℃, Accuracy:±2℃
    7. Fuel supply pressure range: 0----0.4Mpa
    8. Feed Volume Measurement Range: 0.03----45L/H
    9. Return Volume Measurement Range:6----400L/H
    10. Rail pressure: UP TO 2000Bar
    11. Cooling capacity: 5000Kal (water cooling)

    Main characteristics:

    For testing and calibrating:
    1.For the testing of different common rail pumps
    BOSCH:CP1,CP2,CP3 pumps
    DENSO:HP0,HP3,HP4
    DELPHI pumps
    2.For the testing of common rail injectors of BOSCH,DENSO,DELPHI.

    Factory Pictures




  • Specification
    • Brand Name ADMTECK
    • Speed Range 0----4000rpm
    • Power 18.5Kw
    • Fuel supply pressure range 0----0.4Mpa
    • Cylinders 6 / 12
    • Usage Auto Testing Mechine
    • Temperrature Control Range 40±2℃
    • Cooling capacity 5000Kal (water cooling)
    • Weight 1050 kg
    • Package 220.00cm*110.00cm*190.00cm
