ADMTECK

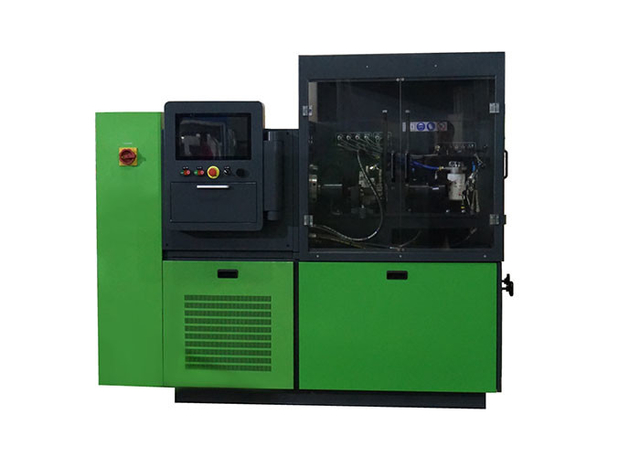

ADM800SEN, for testing Common Rail Injector and Pumps, also can test machenical fuel pumps, measuring with sensors
Technical Specification:
| 1. Power | 11Kw,15Kw,18.5Kw,22Kw etc |
| 2. Rated Voltage | 220V/380V/415V |
| 3. Rated Voltage | 50/60HZ |
| 4. Cylinders | 6 / 12 |
| 5. Speed Range | 0—4000rpm |
| 6. Temperature Control Range | 42℃ ,Accuracy:±2℃ |
| 7. Backflow pressure control range | 0—3 bar |
| 8. Feed Volume Measurement Range | 0----45L/H |
| 9. Return Volume Measurement Range | 0---400L/H |
| 10. Max pressure | 2000 bar |
Color: green blue yellow or on request
Usage: Auto Testing Machine
Power: Electronic
Main Functions:
For testing and calibrating:
1. Mechanical in-line pumps and distributor pumps
2. Electronic control VE pumps and in-line pumps high pressure common rail pumps:
BOSCH CP1, CP2, CP3, DELPHI, SIMENS, DENSO HP0, HP2, HP3 PUMP
3. Common rail injectors
4. The testing database could be updated
5. Check and calibrate automatically and give out the testing report
6. With industrial computer, more stable and reliable
Competitive Advantage:
Factory Pictures:
