ADMTECK
ADM8000SEN,2700Bar,Common Rail Pump Test Bench
Quick Details
Usage: Auto Testing Machine
Power: Electronic
Main Specifications:
Power: 11Kw,15Kw,18.5Kw,22Kw etc
Rated Voltage: 220V/380V/415V
Rated Voltage: 50/60HZ
Cylinders: 6 / 12
Speed Range: 0—4000rpm
Temperature Control Range: 42℃ ,Accuracy:±2℃
Backflow pressure control range: 0—3 bar
Feed Volume Measurement Range: 0----45L/H
Return Volume Measurement Range: 0---400L/H
Max pressure: 2000 bar
Color: green blue yellow or on request
Weight:1080kgs

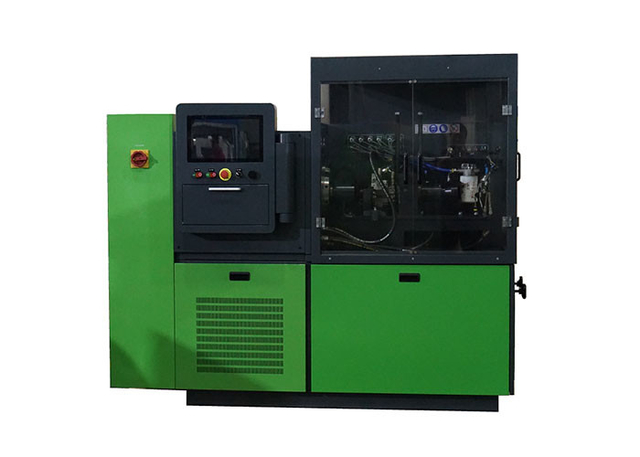

common rail pump and injector test bench:
M800SEN common rail test bench is our latest independent researched special device to test the
performance of high-pressure common rail pump and injector, it can test common rail pump and
injector of BOSCH, SIEMENS, DELPHI and DENSO. It tests the common rail injector by imported
high precise flow meter sensor, can test piezo injector. It controlled by industrial computer by real time.
The data is also obtained by computer. 19 LCD screen display makes the data more clear. M800SEN
can fulfill the remote assistance by internet and make the maintenance easy to operate. Advanced
technology, steady performance, precise measurement and convenient operation.
Main Functions:
For testing and calibrating:
1. Mechanical in-line pumps and distributor pumps
2. Electronic control VE pumps and in-line pumps high pressure common rail pumps: BOSCH CP1,CP2,
CP3, DELPHI, SIMENS, DENSO HP0, HP2, HP3 PUMP
3. Common rail injectors
4. The testing database could be updated
5. Check and calibrate automatically and give out the testing report
6. With industrial computer, more stable and reliable Technical Specification:
Competitive Advantage:
Factory Pictures:
