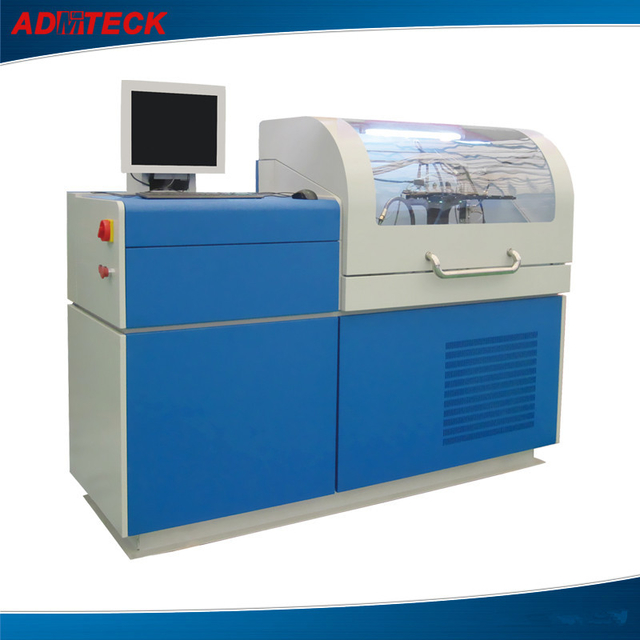

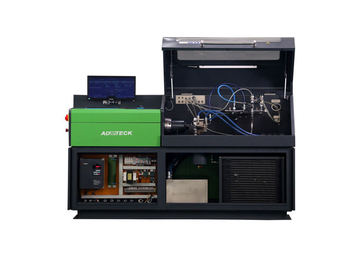

18.5KW 220V Compressor cooling Common rail Injector Test Bench system tester 3 Phase
Quick Details:
Indication: with flow meter
Test injector brand: BOSCH, DELPHI, DENSO, SIEMENS
Usage: Auto Testing Machine
Color: green blue yellow or on request
Power: Electronic
1. Main motor power:18.5KW(25HP)；
2. Working voltage: 3 phase 220/380/415V, 50HZ/60HZ；
3. Speed range: 0—4000rpm；
4. Supply pressure of the testing fuel: 0—4bar；
5. Fuel tank capacity: 80L；
6. Currency control range: 0—3A；
7. Injection width control range: 100--3000µs；
8. Injection volume range: 0.1ML—2000ML/1000times；
9. Backflow measuring range: 6—400L/H；
10. Pressure control range: 0—2000BAR；
11. Fuel temperature range: 30--60℃；
12. Cooling method: Compressor cooling
13. Cooling capacity: 5000KAL
Technical Specification:
| 1. Power | 18.5Kw |
| 2. Rated Voltage | 220V/380V/415V |
| 3. Rated Voltage | 50/60HZ |
| 4. Speed Range | 0—4000rpm |
| 5. Supply pressure of the testing fuel | 0—4bar |
| 6. Fuel tank capacity | 80L |
| 7. Currency control range | 0—3A |
| 8. Injection width control range | 100--3000µs |
| 9. Injection volume range | 0.1ML—2000ML/1000times |
| 10. Backflow measuring range: | 6—400L/H |
| 11. Pressure control range | 0—2000BAR |
| 12. Fuel temperature range | 30--60℃ |
| 13. Cooling method | Compressor cooling |
| 14. Cooling capacity: | 5000KAL |
Factory Pictures:
