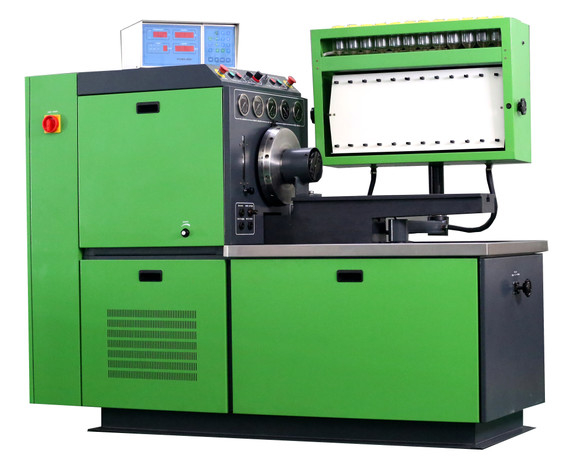

ADM 12PSDW-B, mechanical fuel pump test bench, for testing different fuel pumps,different output power for option

ADMTECK 12PSDW-B, mechanical fuel pump test bench,Injection fuel Pump Test Bench / fuel pump testing machine , driven by motor, six kinds of output power for option,without forced oil lubrication function

Quick Details

Technical specification:

1.Motor power:.5.5KW,7.5KW,11KW,15KW,18.5KW,22KW

2.Power supply voltage:415,380,220v

3.Power supply frequency:50/60HZ

4.Protection level: IP54

5.Speed rang: 0-4000rpm

6.Counter setting range:0-9999

7.Temperature setting rang: 0-80

8.Center height of driving shaft:125mm

9.DC power: 12/24V

10.Diameter of the Driving connector:120mm

11.Measuring tube:45ml,150ml,260ml(optional)

12.Number of Measuring cylinder:12

13.Oil Supply pump:10L/min

14.Oil supply pressure:High pressure: 0-40bar;low pressure:0-4bar

15.Oil tank cubage:60L

16.Pressure meter:Low pressure:0-6bar;high pressure:0-60bar;

inner pressure:0-16bar;Vacuum pressure:.1-2.5bar;Oil meter:0-10bar

17.Heat Power:2kw

18.Temperature controlled range:30-60

Main Functions:

1.Fuel delivered from each cylinder on any speed can be tested

2.Speed, temperature,counter,pressure,Rack meter can be displayed on the numeric unit of test bench.

3.Forced oil lubrication function(Optional)

4.Directly driven by motor,variable frequency stepless speed regulation

5.Static inspection on the delivery time of each cylinder

6.Inspection on Performance of the mechanical and pneumatic governor

7.Inspection on performance of the solenoid valve

8.Inspcetion on performance of the minus pressure of pneumatic governor

9.Inspection on the performance of the Pressure Compensator

10.Oil returned valume of distribute pump

11.Inspection on the inner pressure of the VE pump

12.Inspection on the performance of the minus pressure of pneumatic governor

13.Inspection on the Pump body sealing performance

Competitive Advantage:

• Reasonable Price
• Good after Service
• More Than 10 Years’ Experience
• NICE APPEARANCE
• GOOD QUALITY
• NEW DESIGN
• Highly advanced diesel injection/injector technology
• EASY TO MAINTAIN
• Advantages with ranges of adjustment speed, stable speed, large torque, easy operation and so on.
