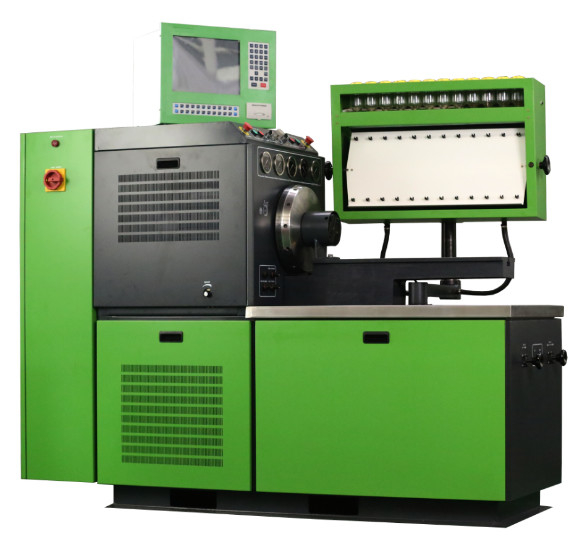

ADMTECK ADM700, Fuel Pump Test Bench,for testing fuel pumps, six kinds of output power for option
Quick Details
Competitive Advantage:
Motor power: 5.5KW, 7.5KW, 11KW, 15KW, 18.5KW, 22KW
Power supply voltage: 415,380,220v
Power supply frequency: 50/60 HZ
Protection level: IP54
Speed range: 0-4000 rpm
Counter setting range: 0-9999
Temperature setting range: 0-80
Center height of driving shaft: 125mm
DC power: 12/24V
Diameter of the Driving connector: 120mm
Measuring tube: 45ml, 150ml, 260ml (optional)
Number of Measuring cylinder: 6,8,12
Oil Supply pump: 10L/min
Oil supply pressure: High pressure:0-40bar;low perssure:0-4bar
Oil tank cubage: 60L
Pressure meter: Low pressure: 0-6bar;high pressure: 0-60bar;inner pressure: 0-16bar;
Vacuum pressure: -1-2.5bar; Oil meter: 0-10bar
Heat Power: 2kw
Temperature controlled range: 30-65
Size: 2100*1100*1750mm
Weight: 950kg
Quick Detail:
Adjustable cylinders 12
Capability with pump type: All in- line and rotary pumps
Packaging Detail: Fumigation-free Wooden Case
Delivery Detail: Within Two Weeks After Order Confirmation
Description:
Function:
1. Fuel delivered from each cylinder on any speed can be tested
2. Speed, temperature, counter, pressure, Rack meter can be displayed on the computer of test bench.
3. Controlled by the digital control unit or computer
4. 15'', 17''CRT or LCD monitor
5. Directly driven by motor, variable frequency stepless speed regulation.
6. Static inspection on the delivery time of each cylinder
7. Inspection on Performance of the mechanical governor
8. Inspection on performance of the solenoid valve of VE pump
9. Inspection on performance of the pneumatic governor
10. Inspection on the performance of the Pressure Compensator
11. Oil returned volume of distribute pump
12. Inspection on the Inner pressure of the VE pump
13. Inspection on the performance of the minus pressure of pneumatic governor
14. Inspection on Pump body sealing performance
Technical specification:
| Motor power | 5.5,7.5,11,15,18.5,22kw |
| Power supply voltage | 415,380,220v |
| Power supply frequency | 50/60 HZ |
| Protection level | IP54 |
| Speed range | 0-4000 rpm |
| Counter setting range | 0-9999 |
| Temperature setting range | 0-80 |
| Center height of driving shaft | 125mm |
| DC power | 12/24V |
| Diameter of the Driving connector | 120mm |
| Measuring tube | 45ml,150ml,260ml(optional) |
| Number of Measuring cylinder | 6,8,12 |
| Oil Supply pump | 10L/min |
| Oil supply pressure: High pressure | 0-40bar |
| Oil supply pressure: low pressure | 0-4bar |
| Oil tank cubage | 60L |
| Heat Power | 2kw |
| Temperature controlled range | 30-65 |
| Size | 2100*1060*1750mm |
| Weight | 950kg
|
Competitive Advantage:
Advantages with ranges of adjustment speed, stable speed, large torque, easy operation and so on.
