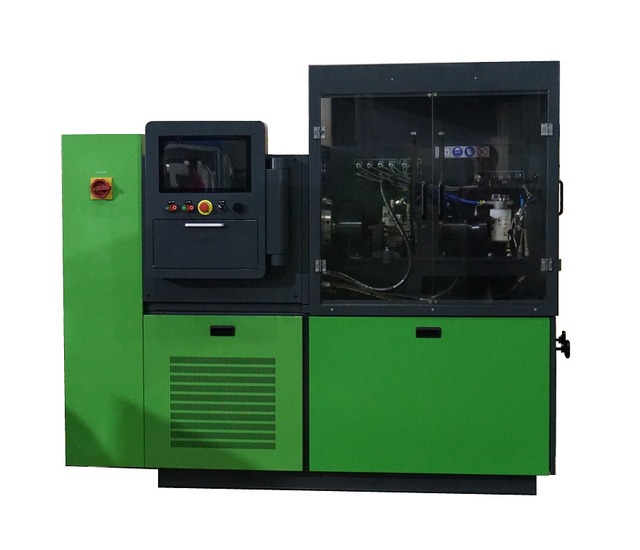

ADM825,2500Bar,11/15/18.5/22Kw,Common Rail System Test Bench

Name: ADM825,2500Bar,11/15/18.5/22Kw,Common Rail System Test Bench
SKU: 155501
Price: 18350 USD
Availability: InStock

0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.155501

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews Request Quote

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Download
Questions & Answers
Customer Reviews

$ 18,350

0Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}

{{ item.num }} pieces

$ {{ item.price }}

{{item.name}}* {{item.values[0].value}}: {{sku.value}}

Quantity:

{{detail_data.displayed_price.unit_type_name}}(s)

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Shipping:

Free Shipping

Can't deliver

To Be Negotiated

to United States Change

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details

Total Price:

$ 18,350 ~~$ 16,700~~

Shipping calculated at checkout.

Weight:

{{Number(packInfo.weight).toFixed(2)}} KG

Package:

{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm

Returns:

Read details

Add to Wish list

You May Also Like

Description
Description
Specification
Download
Customer Reviews
Questions & Answers

Description

Main Characteristics:

For testing and calibrating:

1.Mechanical in-line pumps and distributor pumps

2.Electronic control VE pumps and in-line pumps high pressure common rail pumps: BOSCH CP1, CP2, CP3, DELPHI, SIMENS, DENSO HP0, HP2, HP3 PUMP

3.Common rail injectors,BOSCH DENSO DELPHI CAT CUMMINS VDO

4.Test HEUI injector and pump;

5.Test denso V3.V4 pump

6.Test CAT 320 D common rail pump

7.Test EUI/EUP ,HPI/ISX, QSK60 injector

8.The testing database could be updated

9.Bosch and Delphi c2i,c3i coding

10.Check and calibrate automatically give out the testing report

11.With industrial computer, more stable and reliable

Technical Specification:

1.Power: 20HP

2.Rated Voltage:220V/380V/415V

3.Rated Voltage:50/60HZ

4.Cylinders: 6/12

5.Speed Range: 0--4000rpm.

6.Temperature Control Range: 42℃, Accuracy:±2℃

7.Backflow pressure control range:0--3 bar

8.Feed Volume Measurement Range:0--45L/H

9.Return Volume Measurement Range:0--400L/H

10.Max pressure:2500 bar

Specification

Power 11Kw/15KW/18.5KW/22KW
Product name Common Rail Test Bench
Voltage 220V/380V/415/V
Warranty 1 Year
Weight 1100 kg
Package 230.00cm*110.00cm*195.00cm
